MACHINE INFORMATION

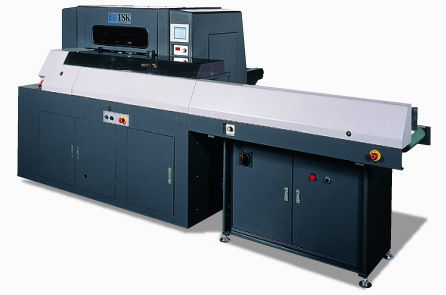

The single cast iron frame of the TSA-3 three-knife trimmer promises long years of productivity. Books are trimmed in a pile. The pile is tightly registered prior to trimming, and registration is maintained during insertion and ejection. The cutting angle of the front knife nears the cutting angle of a guillotine, providing for a neater front edge trim.

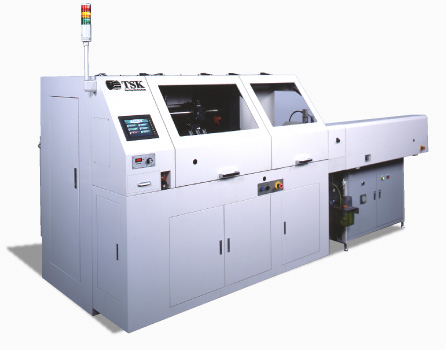

Regarding TSA-3A, head and bottom sides of books can be adjusted by its touch panel and it makes the make-ready time shorter.
Also, the adoption of its full cover improves safety guarding further.

Model Format
Size
Max
mechanical
Speed
Power
Requirement
Dimensions (mm) Weight
Max
F.S
Min
F.S
Max
Pilehight
CPH L W H kg
TSA-3 300
X
400
90
X
145
125 3,600 9.6kw 8,000 2,500 1,620 3,600
TSA-3A 300
X
400
90
X
145
125 3,600 10kw 3,500 2,500 1,620 3,650

*Other number of station available.
